Cylinders

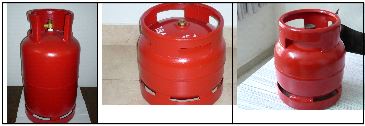

LPG CYLINDERS (TWO PIECE)
| S.No | TITLE | LPG CYLINDERS (TWO PIECE) |
|---|---|---|
| 1 | Cylinder Capacity in Kgs | 3,6,12.5,13,15,17,19,21 |
| 2 | Valve | Fitted with Valves as per customer requirement |
| 3 | Standard / Specification | EN 1442, ISO 4706 and other standard as per country requirement |
| S.No. | TITLE | Transportable Welded Steel Gas Container of 82 Ltr. Water Capacity For LPG |
|---|---|---|
| 1 | Outside Diameter | 330 ± 5mm |
| 2 | Total Height | 1150 ± 10mm |
| 3 | Foot ring OD | 305 ± 5mm |
| 4 | Water Capacity | 82.0 Lts. |
| 5 | Gas Capacity | 38 kg LPG |
| 6 | Heat Treatment | Stress Relieved |
| 7 | Valve Pad Threads | ¾” NGT (F) |
| 8 | Valve Fitted | 22mm Self Closing Valve with Pressure Releif OR Any other Valve as required by the customer |
| 9 | Standard | ISO 4706/EN 1442 / NIS 69 |
| S.No. | TITLE | Transportable Welded Steel Gas Container of 108 Ltr. Water Capacity For LPG |
|---|---|---|
| 1 | Outside Diameter | 350 (+5, -0) mm |
| 2 | Total Height | 1350 ± 10mm |
| 3 | Foot ring OD | 350 ± 3mm |
| 4 | Water Capacity | 108 Lts. |
| 5 | Gas Capacity | 50 kg LPG |
| 6 | Heat Treatment | Stress Relieved |
| 8 | Valve Fitted | Ø 20mm Self Closing Valve with inlet threads¾” NGT with Pressure Relief mechanism OR Any other Valve as required by the customer |
| 9 | Standard | ISO 4706 / EN 1442 / NIS 69 |

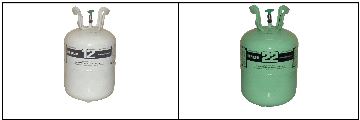

Refrigerant Gas Cylinder
| S.No | TITLE | REFRIGERANT GAS CYLINDERS – DISPOSABLE TYPE |
|---|---|---|
| 1 | Cylinder Capacity in lb ( Kgs) | 30lbs (13Kgs), 50lbs (22.5Kgs) |
| 2 | Cylinder Diameter | 9",9½" and 12" |
| 3 | Valve | Duly fitted (welded) with refrigerant valve with outlet connection 7/16"X20 UNF male threads |
| 4 | Safety Features | Rupture Disc |
| 5 | Standard / Specification | Confirms to DOT 39 |
